Metric Banjo Fittings - The Flexible Hubs of Industrial Piping
Publish Time: 2025-09-24
In industrial fluid transmission systems, fittings, like joints in the human body, perform the critical tasks of connection, diversion, and sealing. Metric banjo fittings, with their unique design and wide applicability, have become star components in hydraulic, pneumatic, and fuel systems. This article will unveil the mysteries of this precision component from three perspectives: structural principles, application scenarios, and technical advantages.
I. The Past and Present of the Banjo Fitting: From Musical Instrument to Industry
The banjo fitting's name derives from its flat, circular structure, resembling the stringed instrument banjo. This design was first used in automotive fuel systems in the early 20th century to address the installation difficulties of traditional right-angle fittings in confined spaces. Its core innovation lies in routing the fluid channel through the interior of the fitting, creating a unique "lateral opening + center channel" structure. This allows the pipe to rotate 360 degrees around the fitting without leaking, greatly enhancing installation flexibility.
The standardization of metric banjo connectors began in the mid-20th century. With the adoption of the International System of Units (SI), thread sizes were standardized to metric standards (e.g., M10×1.0, M12×1.5), distinguishing them from imperial (e.g., 1/4-18 NPT) and American (e.g., 7/16-20 UNF). This standardization facilitated global interchangeability of components for industrial equipment and reduced the cost of cross-regional collaboration.
II. Anatomy of a Metric Banjo Connector: Four-Layer Construction Achieves Precision Seals

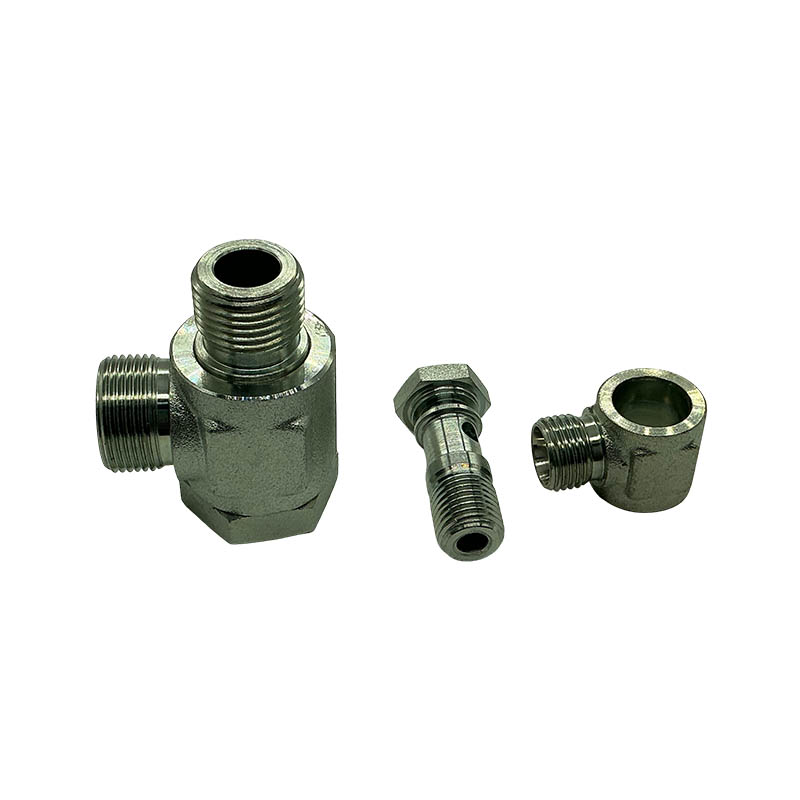

A typical metric banjo connector consists of four parts:
The connector body: Forged from high-strength steel or stainless steel, with a zinc or nickel plating for enhanced corrosion resistance. It features a central fluid channel and side mounting holes with diameters matching metric threads (e.g., an M10 connector corresponds to a 10mm hole).
The sealing assembly: This includes an O-ring (nitrile rubber or fluororubber) and a metal washer. The O-ring is embedded in the contact surface between the fitting and the pipe, achieving a primary seal through elastic deformation. Metal washers, used in high-pressure applications, fill small gaps through plastic deformation.
Securing Bolts: Metric threaded bolts (such as M8×1.25) pass through the fitting and secure it to the equipment. The bolt heads are designed with a hexagonal or internal hexagonal shape for easy tool handling.
Anti-Loosening Device: In vibrating environments, spring washers or thread lockers (such as Loctite 243) are used to prevent the bolts from loosening, ensuring long-term sealing reliability.
Sealing Principle: When the bolts are tightened, axial pressure is generated between the fitting and the equipment surface, forcing the O-ring to compress and deform, filling the microscopic irregularities in the contact surface. This creates a dual guarantee of "mechanical locking + fluid sealing." Experimental data shows that high-quality metric banjo fittings can remain leak-free for 24 hours at a pressure of 40 MPa.
III. The Versatile Uses of Metric Banjo Connectors: Analysis of Five Major Application Scenarios
Automotive Fuel Systems: In connecting the engine fuel rail to the fuel injectors, banjo connectors allow fuel lines to bypass the complex structure of the engine block, reducing bend radius and fuel pressure loss. For example, the use of an M12×1.5 banjo connector on a certain diesel engine reduced fuel injection response time by 15%.
Hydraulic Braking Systems: Heavy-duty truck ABS brake modules connect to brake oil lines using banjo connectors. The 360-degree rotation of the connector allows the oil line to avoid the steering mechanism's motion path, preventing wear. Tests have shown that these connectors maintain a seal in temperatures ranging from -40°C to 120°C.
Industrial Robots: In the joints of six-axis robots, banjo connectors provide flexible steering space for hydraulic drive lines, reducing line interference. Using lightweight aluminum alloy banjo connectors on an automotive welding robot reduced overall weight by 8% and energy consumption by 5%.
Agricultural Machinery: Combine harvesters' hydraulic lifting systems use banjo connectors to connect multi-way valves and cylinders. Their mud and sand resistance (IP67 certified) ensures long-term reliable operation in harsh field environments.
Aerospace: Aircraft landing gear hydraulic systems utilize titanium alloy banjo connectors. While lightweight (with a density only 60% of steel), they withstand extreme temperatures ranging from -55°C to 150°C, ensuring flawless landing gear retraction and extension.
IV. Technological Evolution: Three Innovative Trends in Metric Banjo Connectors
Material Revolution: The transition from traditional carbon steel to high-strength aluminum alloys (such as 7075-T6) and composite materials (carbon fiber-reinforced PEEK) achieves a 30%-50% weight reduction while maintaining strength.
Intelligent Integration: Some high-end connectors feature built-in pressure sensors that monitor fluid conditions in real time and transmit wireless signals to the control system for preventive maintenance.
Quick-connect technology: Combining a compression or push-fit design, we've developed a "one-touch connection" banjo connector, reducing installation time from the traditional 10 minutes to 30 seconds, significantly improving production line efficiency.
V. Selection Guide: Four Key Parameters Determine Connector Performance
Metric Thread Specifications: Must match the equipment interface (e.g., M10×1.0 corresponds to a 10mm hole diameter), with an error of no more than ±0.05mm.
Working Pressure Rating: Select based on the system's maximum pressure. Standard hydraulic systems use a 25MPa rating, while high-pressure systems require a 60MPa rating.
Temperature Range: Rubber O-rings typically operate at temperatures between -30°C and 100°C, while fluororubber can operate from -20°C to 200°C.
Media Compatibility: Fuel systems require ethanol-resistant 316L stainless steel, while hydraulic systems prefer galvanized carbon steel to reduce costs.
The Big Future of Small Connectors
From automotive engine compartments to deep-sea exploration equipment, metric banjo connectors, with their "small and beautiful" design, are driving the evolution of industrial fluid transfer technology. With the maturation of 3D printing technology, customizable internal flow paths within connectors may be possible, further optimizing fluid dynamics. In this era of precision manufacturing, every banjo connector represents the fruit of engineers' ingenuity, silently supporting the operation of modern industry.
