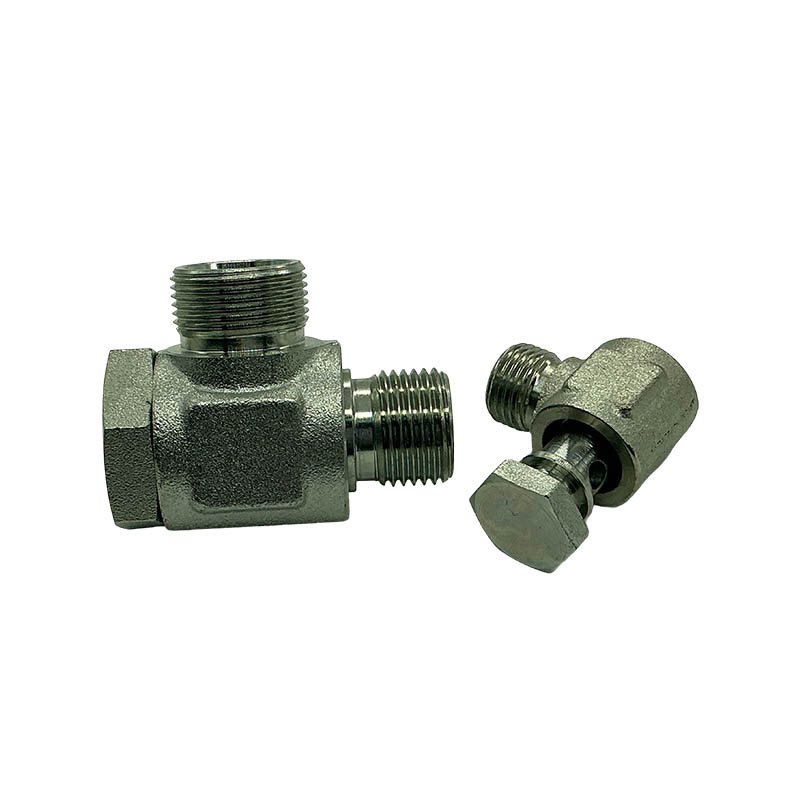

Metric Banjo

1CI 1DI
Order quantity, custom drawings.

Consult

Features
Technical Indicators

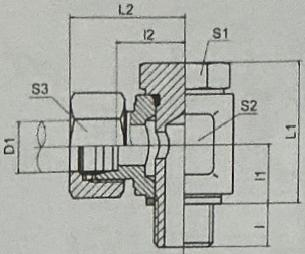

Overall Dimension


1CI 1DI 1CI-RN 1DI-RN PART NO. THREAD D1 TUBE O.D. DIMENSIONS BOLT O-RING SEAL MPa E F I 11 L1 I2 L2 S1 S2 S3 1CI-12-10 M12X1.5 M10X1 6 10 9 25.5 12 27 14 17 14 700M-10I O08.1X1.6 ZHD-10 31.5 Light Series L 1CI-14-12 M14X1.5 M12X1.5 8 12 14.5 33 14.5 29 17 22 17 700M-12I O09.3X2.4 ZHD-12 1CI-16-14 M16X1.5 M14X1.5 10 11 12.5 33 16.5 31 19 24 19 700M-14I O11.3X2.4 ZHD-14 1CI-18-16 M18X1.5 M16X1.5 12 11 15 39 19 34 22 27 22 700M-16I O13.3X2.4 ZHD-16 1CI-22-18 M22X1.5 M18X1.5 15 12 16.5 42 21.5 37 24 30 27 700M-18I O15.3X2.4 ZHD-18 1CI-26-22 M26X1.5 M22X1.5 18 12 17.5 49 22 38 27 32 32 700M-22I O19.3X2.4 ZHD-22 1CI-30-26 M30X2 M26X1.5 22 14 22 56 28.5 45 36 41 36 700M-26I O23.5X3.0 ZHD-27 16 Light Series L 1CI-36-33 M36X2 M33X2 28 18 30.5 71 33 50 41 50 41 700M-33I O29.5X3.0 ZHD-33 1CI-45-42 M45X2 M42X2 35 20 35.5 82 37 59 50 60 50 700M-42I O38.5X3.0 ZHD-42 1CI-52-48 M52X2 M48X2 42 22 40.5 93 41.5 64 55 70 60 700M-48I O44.5X3.0 ZHD-48 1DI-14-12 M14X1.5 M12X1.5 6 12 14.5 33 16.5 31 17 22 17 700M-12I O09.3X2.4 ZHD-12 63 Heavy Series S 1DI-16-14 M16X1.5 M14X1.5 8 12 14.5 33 17.5 32 19 24 19 700M-14I O11.3X2.4 ZHD-14 1DI-18-16 M18X1.5 M16X1.5 10 12 17 39 19.5 36 22 27 22 700M-16I O13.3X2.4 ZHD-16 1DI-20-18 M20X1.5 M18X1.5 12 12 18.5 42 21 37 24 30 24 700M-18I O15.3X2.4 ZHD-18 1DI-22-20 M22X1.5 M20X1.5 14 14 20 46 23.5 41 27 32 27 700M-20I O17.3X2.4 ZHD-20 1DI-24-22 M24X1.5 M22X1.5 16 14 17.5 49 23 41 27 32 30 700M-22I O19.3X2.4 ZHD-22 1DI-30-27 M30X2 M27X2 20 16 22 56 27.5 49 36 41 36 700M-27I O23.5X3.0 ZHD-27 40 Heavy Series S 1DI-36-33 M36X2 M33X2 25 18 30.5 71 32.5 57 41 50 46 700M-33I O29.5X3.0 ZHD-33 1DI-42 M42X2 M42X2 30 20 35.5 82 38 65 50 60 50 700M-42I O38.5X3.0 ZHD-42 1DI-52-48 M52X2 M48X2 38 22 40.5 93 42.5 73 55 70 60 700M-48I O44.5X3.0 ZHD-48 Note:1.In case ifyou are interested to order the adapter in complete set with cuting ring and nut it is necessary to insert sufix “RN” after our part no.for example 1DI-36-33RN.

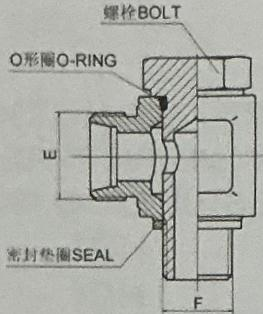

PART NO.	THREAD		D1 TUBE O.D.	DIMENSIONS								BOLT	O-RING	SEAL	MPa
PART NO.	E	F	D1 TUBE O.D.	I	11	L1	I2	L2	S1	S2	S3	BOLT	O-RING	SEAL	MPa
1CI-12-10	M12X1.5	M10X1	6	10	9	25.5	12	27	14	17	14	700M-10I	O08.1X1.6	ZHD-10	31.5 Light Series L
1CI-14-12	M14X1.5	M12X1.5	8	12	14.5	33	14.5	29	17	22	17	700M-12I	O09.3X2.4	ZHD-12
1CI-16-14	M16X1.5	M14X1.5	10	11	12.5	33	16.5	31	19	24	19	700M-14I	O11.3X2.4	ZHD-14
1CI-18-16	M18X1.5	M16X1.5	12	11	15	39	19	34	22	27	22	700M-16I	O13.3X2.4	ZHD-16
1CI-22-18	M22X1.5	M18X1.5	15	12	16.5	42	21.5	37	24	30	27	700M-18I	O15.3X2.4	ZHD-18
1CI-26-22	M26X1.5	M22X1.5	18	12	17.5	49	22	38	27	32	32	700M-22I	O19.3X2.4	ZHD-22
1CI-30-26	M30X2	M26X1.5	22	14	22	56	28.5	45	36	41	36	700M-26I	O23.5X3.0	ZHD-27	16 Light Series L
1CI-36-33	M36X2	M33X2	28	18	30.5	71	33	50	41	50	41	700M-33I	O29.5X3.0	ZHD-33
1CI-45-42	M45X2	M42X2	35	20	35.5	82	37	59	50	60	50	700M-42I	O38.5X3.0	ZHD-42
1CI-52-48	M52X2	M48X2	42	22	40.5	93	41.5	64	55	70	60	700M-48I	O44.5X3.0	ZHD-48
1DI-14-12	M14X1.5	M12X1.5	6	12	14.5	33	16.5	31	17	22	17	700M-12I	O09.3X2.4	ZHD-12	63 Heavy Series S
1DI-16-14	M16X1.5	M14X1.5	8	12	14.5	33	17.5	32	19	24	19	700M-14I	O11.3X2.4	ZHD-14
1DI-18-16	M18X1.5	M16X1.5	10	12	17	39	19.5	36	22	27	22	700M-16I	O13.3X2.4	ZHD-16
1DI-20-18	M20X1.5	M18X1.5	12	12	18.5	42	21	37	24	30	24	700M-18I	O15.3X2.4	ZHD-18
1DI-22-20	M22X1.5	M20X1.5	14	14	20	46	23.5	41	27	32	27	700M-20I	O17.3X2.4	ZHD-20
1DI-24-22	M24X1.5	M22X1.5	16	14	17.5	49	23	41	27	32	30	700M-22I	O19.3X2.4	ZHD-22
1DI-30-27	M30X2	M27X2	20	16	22	56	27.5	49	36	41	36	700M-27I	O23.5X3.0	ZHD-27	40 Heavy Series S
1DI-36-33	M36X2	M33X2	25	18	30.5	71	32.5	57	41	50	46	700M-33I	O29.5X3.0	ZHD-33
1DI-42	M42X2	M42X2	30	20	35.5	82	38	65	50	60	50	700M-42I	O38.5X3.0	ZHD-42
1DI-52-48	M52X2	M48X2	38	22	40.5	93	42.5	73	55	70	60	700M-48I	O44.5X3.0	ZHD-48
Note:1.In case ifyou are interested to order the adapter in complete set with cuting ring and nut it is necessary to insert sufix “RN” after our part no.for example 1DI-36-33RN.
