Equal Tees

PART NO.

THREAD

TUBE O.D.

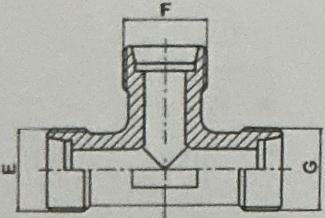

DIMENSIONS

MPa

E,F,G

D1,D2,D3

11,12,13

L1,L2,L3

S1

S2,S3,S4

AC-08

M8X1

4

11

21

9

10

10
Light Series
LL

AC-10

M10X1

5

9.5

21

9

12

AC-10LL

M10X1

6

9.5

21

9

12

AC-12LL

M12X1

8

11.5

23

12

14

AC-12

M12X1.5

6

12

27

12

14

25
Light Series
L

AC-14

M14X1.5

8

14

29

12

17

AC-16

M16X1.5

10

15

30

14

19

AC-18

M18X1.5

12

17

32

17

22

AC-22

M22X1.5

15

21

36

19

27

AC-26

M26X1.5

18

23.5

40

24

32

AC-30

M30X2

22

27.5

44

27

36

16
Light Series
L

AC-36

M36X2

28

30.5

47

36

41

AC-45

M45X2

35

34.5

56

41

50

AC-52

M52X2

42

40

63

50

60

AD-14

M14X1.5

6

16

31

12

17

63
Heavy Series
S

AD-16

M16X1.5

8

17

32

14

19

AD-18

M18X1.5

10

17.5

34

17

22

AD-20

M20X1.5

12

21.5

38

17

24

AD-22

M22X1.5

14

22

40

19

27

AD-24

M24X1.5

16

24.5

43

24

30

40
Heavy Series
S

AD-30

M30X2

20

26.5

48

27

36

AD-36

M36X2

25

30

54

36

46

AD-42

M42X2

30

35.5

62

41

50

AD-52

M52X2

38

41

72

50

60

31.5
Heavy Series
S

Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix "RN" after our part no.,for example AC-22RN.
