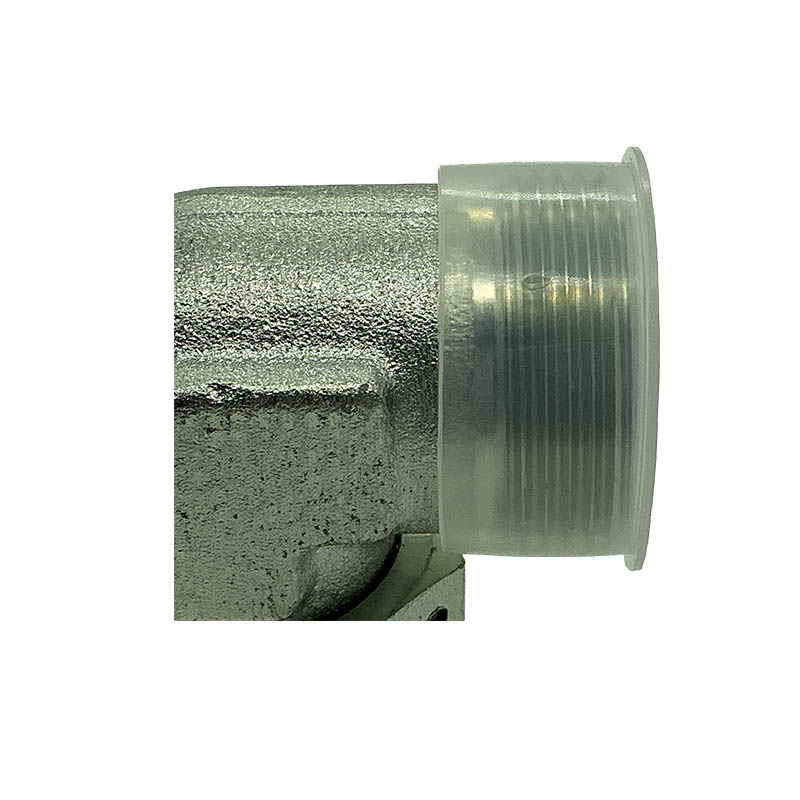

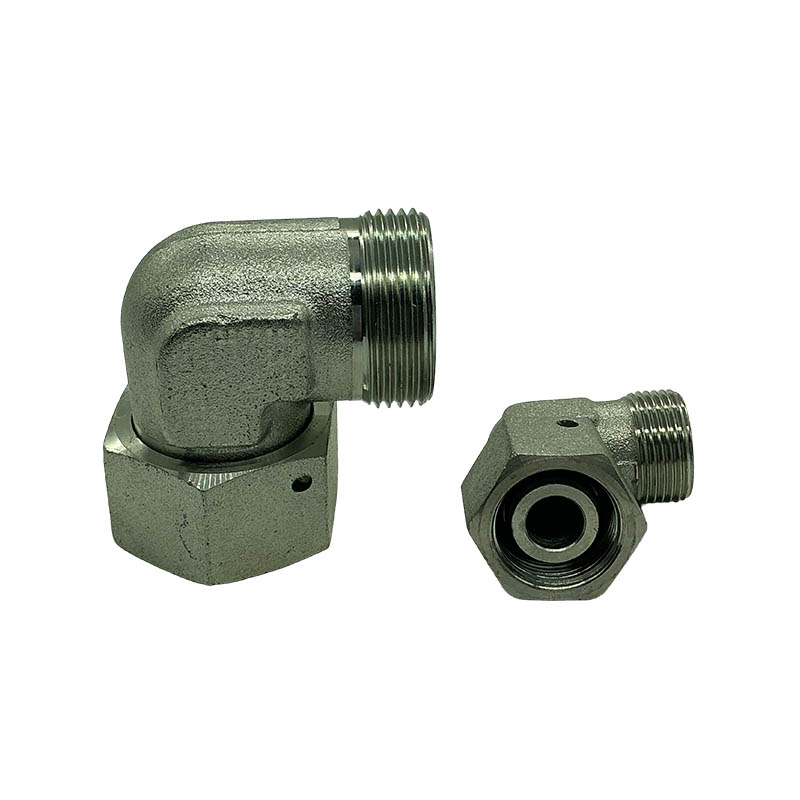

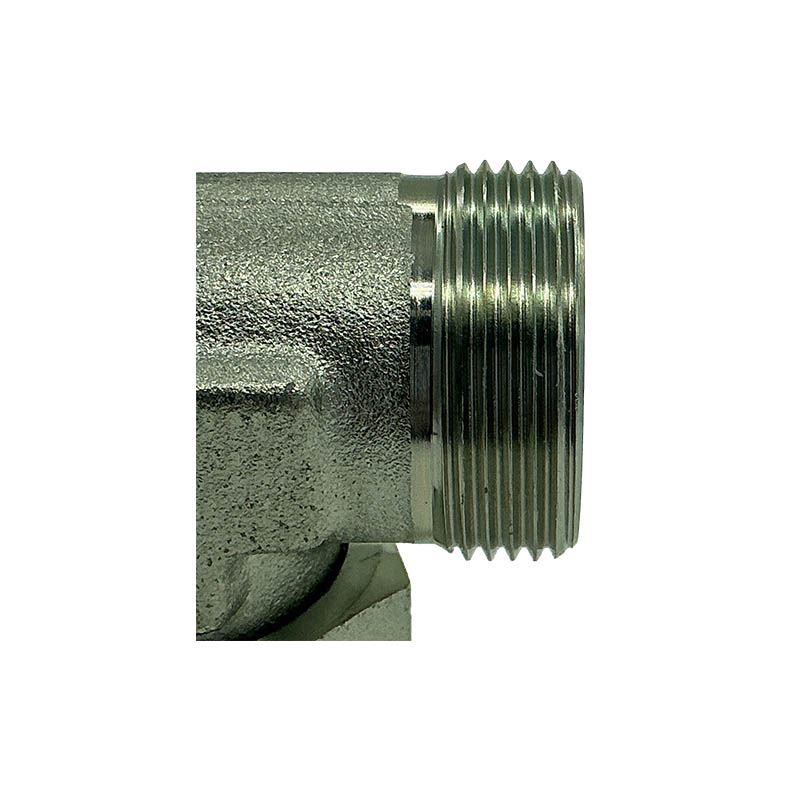

Reducer Tube Adaptor With Swivel Nut 90° Elbow

2C9 2D9
Order quantity, custom drawings.


2C9 2D9 2C9-RN 2D9-RN PART NO. THREAD TUBE O.D. DIMENSIONS MPa E F D1 D2 I1 L1 L2 S1 S2 S3 2C9-12 M12X1.5 M12X1.5 6 6 12 27 26 12 14 14 25 Light Series L 2C9-14 M14X1.5 M14X1.5 8 8 14 29 27.5 12 17 17 2C9-16 M16X1.5 M16X1.5 10 10 15 30 29 14 19 19 2C9-18 M18X1.5 M18X1.5 12 12 17 32 29.5 17 22 22 2C9-22 M22X1.5 M22X1.5 15 15 21 36 32.5 19 27 27 2C9-26 M26X1.5 M26X1.5 18 18 23.5 40 35.5 24 32 32 2C9-30 M30X2 M30X2 22 22 27.5 44 38.5 27 36 36 16 Light Series L 2C9-36 M36X2 M36X2 28 28 30.5 47 41.5 36 41 41 2C9-45 M45X2 M45X2 35 35 34.5 56 51 41 50 50 2C9-52 M52X2 M52X2 42 42 40 63 56 50 60 60 2D9-14 M14X1.5 M14X1.5 6 6 16 31 27 12 17 17 63 Heavy Series S 2D9-16 M16X1.5 M16X1.5 8 8 17 32 27.5 14 19 19 2D9-18 M18X1.5 M18X1.5 10 10 17.5 34 30 17 22 22 2D9-20 M20X1.5 M20X1.5 12 12 21.5 38 31 17 24 24 2D9-22 M22X1.5 M22X1.5 14 14 22 40 35 19 27 27 2D9-24 M24X1.5 M24X1.5 16 16 24.5 43 36.5 24 30 30 40 Heavy Series S 2D9-30 M30X2 M30X2 20 20 26.5 48 44.5 27 36 36 2D9-36 M36X2 M36X2 25 25 30 54 50 36 46 46 2D9-42 M42X2 M42X2 30 30 35.5 62 55 41 50 50 2D9-52 M52X2 M52X2 38 38 41 72 63 50 60 60 31.5 Heavy Series S Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 2C9-30RN.

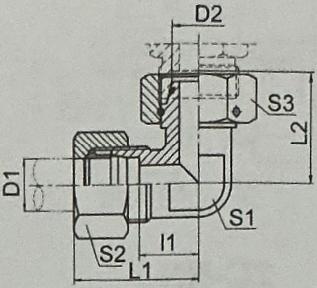

PART NO.	THREAD		TUBE O.D.		DIMENSIONS						MPa
PART NO.	E	F	D1	D2	I1	L1	L2	S1	S2	S3	MPa
2C9-12	M12X1.5	M12X1.5	6	6	12	27	26	12	14	14	25 Light Series L
2C9-14	M14X1.5	M14X1.5	8	8	14	29	27.5	12	17	17
2C9-16	M16X1.5	M16X1.5	10	10	15	30	29	14	19	19
2C9-18	M18X1.5	M18X1.5	12	12	17	32	29.5	17	22	22
2C9-22	M22X1.5	M22X1.5	15	15	21	36	32.5	19	27	27
2C9-26	M26X1.5	M26X1.5	18	18	23.5	40	35.5	24	32	32
2C9-30	M30X2	M30X2	22	22	27.5	44	38.5	27	36	36	16 Light Series L
2C9-36	M36X2	M36X2	28	28	30.5	47	41.5	36	41	41
2C9-45	M45X2	M45X2	35	35	34.5	56	51	41	50	50
2C9-52	M52X2	M52X2	42	42	40	63	56	50	60	60
2D9-14	M14X1.5	M14X1.5	6	6	16	31	27	12	17	17	63 Heavy Series S
2D9-16	M16X1.5	M16X1.5	8	8	17	32	27.5	14	19	19
2D9-18	M18X1.5	M18X1.5	10	10	17.5	34	30	17	22	22
2D9-20	M20X1.5	M20X1.5	12	12	21.5	38	31	17	24	24
2D9-22	M22X1.5	M22X1.5	14	14	22	40	35	19	27	27
2D9-24	M24X1.5	M24X1.5	16	16	24.5	43	36.5	24	30	30	40 Heavy Series S
2D9-30	M30X2	M30X2	20	20	26.5	48	44.5	27	36	36
2D9-36	M36X2	M36X2	25	25	30	54	50	36	46	46
2D9-42	M42X2	M42X2	30	30	35.5	62	55	41	50	50
2D9-52	M52X2	M52X2	38	38	41	72	63	50	60	60	31.5 Heavy Series S
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 2C9-30RN.
