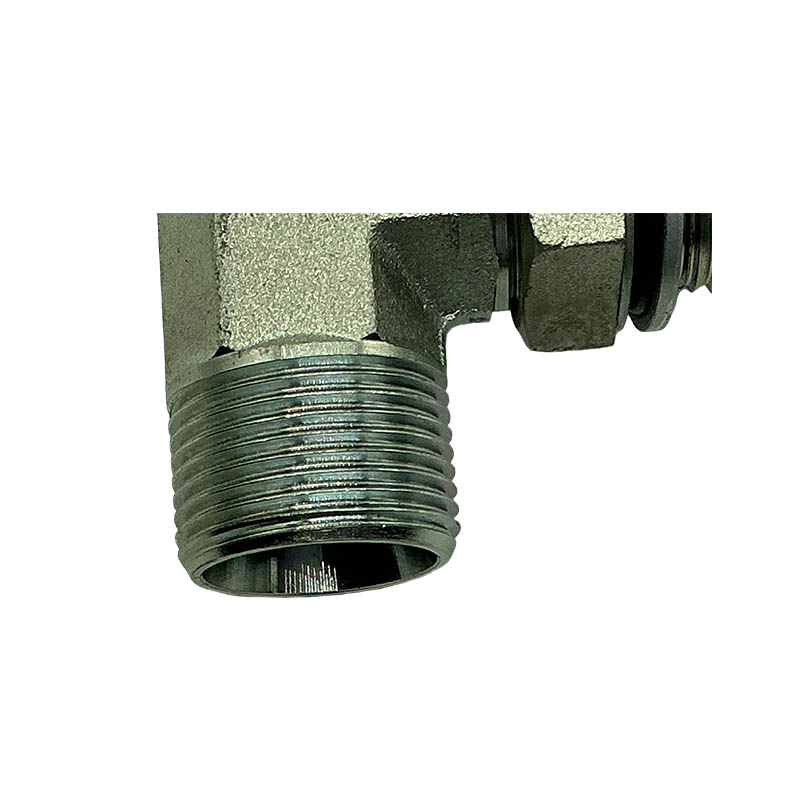

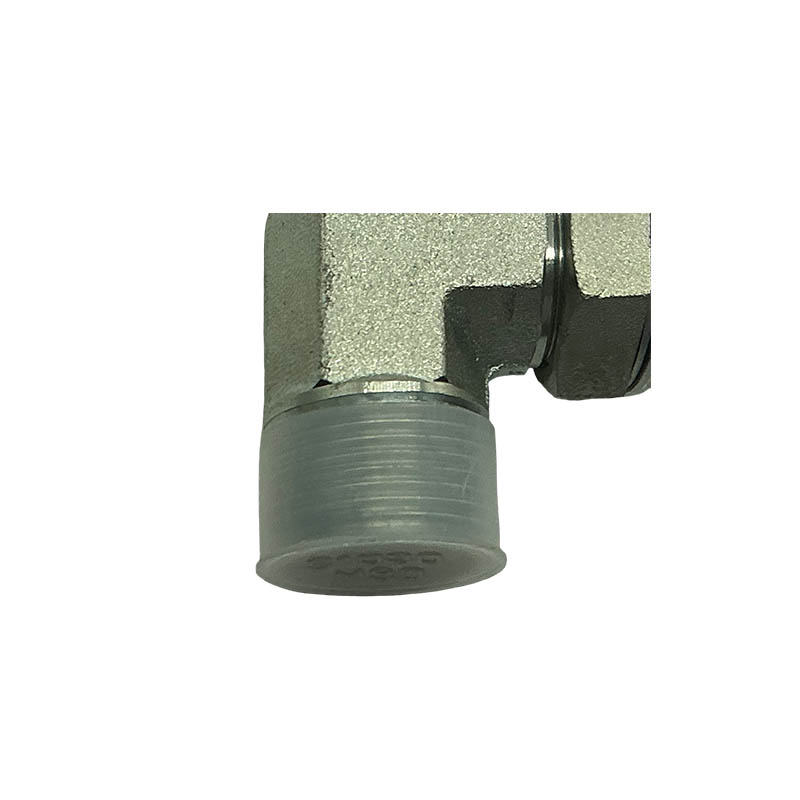

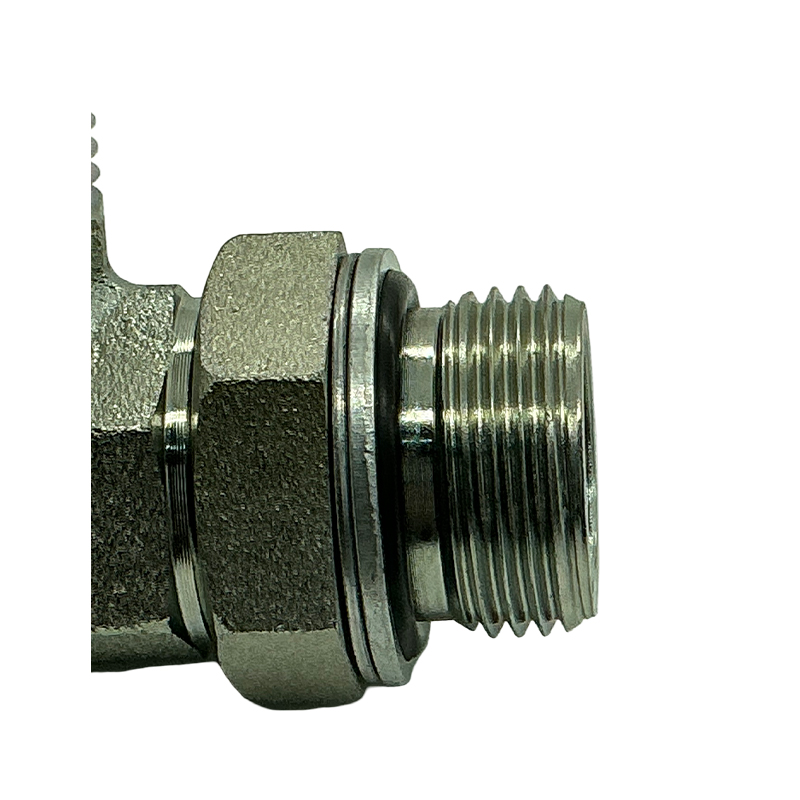

90° Elbow Metric Thread Adjustable Stud Ends

1CH9-OG 1DH9-OG
Order quantity, custom drawings.


1CH9-OG 1DH9-OG 1CH9-OGRN 1DH9-OGRN PART NO. THREAD D1 TUBE O.D. O-RING DIMENSIONS MPa E F 11 L1 L2 S1 S2 S3 1CH9-12-10OG M12X1.5 M10X1 6 O08.1X1.6 13 28 26.5 11 14 14 31.5 Light Series L 1CH9-14-12OG M14X1.5 M12X1.5 8 O09.3X2.4 15.5 30.5 32 14 17 17 1CH9-16-14OG M16X1.5 M14X1.5 10 O11.3X2.4 17.5 32.5 34 16 19 19 1CH9-18-16OG M18X1.5 M16X1.5 12 O13.3X2.4 19 34 36 19 22 22 1CH9-22-18OG M22X1.5 M18X1.5 15 O15.3X2.4 22 37 39.5 22 27 24 1CH9-26-22OG M26X1.5 M22X1.5 18 O19.3X2.4 25.5 42 43.5 27 32 27 1CH9-30-27OG M30X2 M27X2 22 O23.5X3.0 29.5 45.8 50 30 36 32 16 Light Series L 1CH9-36-33OG M36X2 M33X2 28 O29.5X3.0 33.3 49.8 54 36 41 41 1DH9-14-12OG M14X1.5 M12X1.5 6 O09.3X2.4 17.5 32.5 32 14 17 17 63 Heavy Series S 1DH9-16-14OG M16X1.5 M14X1.5 8 O11.3X2.4 18.5 33.7 34 16 19 19 1DH9-18-16OG M18X1.5 M16X1.5 10 O13.3X2.4 19.5 36 36 19 22 22 1DH9-20-18OG M20X1.5 M18X1.5 12 O15.3X2.4 22.7 36 37 19 24 24 1DH9-22-20OG M22X1.5 M20X1.5 14 O17.3X2.4 23.5 41 40.5 22 27 27 1DH9-24-22OG M24X1.5 M22X1.5 16 O19.3X2.4 24 42 41 24 30 27 1DH9-30-27OG M30X2 M27X2 20 O23.5X3.0 32.9 49.8 50 30 36 32 40 Heavy Series S 1DH9-36-33OG M36X2 M33X2 25 O29.5X3.0 32.8 56.8 54 36 46 41 1DH9-42OG M42X2 M42X2 30 O38.5X3.0 36 62.7 57.2 41 50 50 Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert sufix "RN" after our part NO.,for example 1DH9-20-18OGRN.

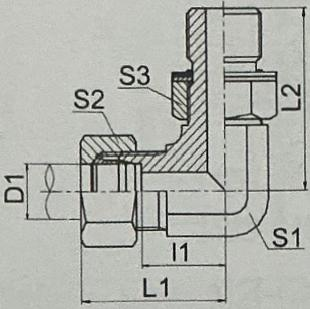

PART NO.	THREAD		D1 TUBE O.D.	O-RING	DIMENSIONS						MPa
PART NO.	E	F	D1 TUBE O.D.	O-RING	11	L1	L2	S1	S2	S3	MPa
1CH9-12-10OG	M12X1.5	M10X1	6	O08.1X1.6	13	28	26.5	11	14	14	31.5 Light Series L
1CH9-14-12OG	M14X1.5	M12X1.5	8	O09.3X2.4	15.5	30.5	32	14	17	17
1CH9-16-14OG	M16X1.5	M14X1.5	10	O11.3X2.4	17.5	32.5	34	16	19	19
1CH9-18-16OG	M18X1.5	M16X1.5	12	O13.3X2.4	19	34	36	19	22	22
1CH9-22-18OG	M22X1.5	M18X1.5	15	O15.3X2.4	22	37	39.5	22	27	24
1CH9-26-22OG	M26X1.5	M22X1.5	18	O19.3X2.4	25.5	42	43.5	27	32	27
1CH9-30-27OG	M30X2	M27X2	22	O23.5X3.0	29.5	45.8	50	30	36	32	16 Light Series L
1CH9-36-33OG	M36X2	M33X2	28	O29.5X3.0	33.3	49.8	54	36	41	41	16 Light Series L
1DH9-14-12OG	M14X1.5	M12X1.5	6	O09.3X2.4	17.5	32.5	32	14	17	17	63 Heavy Series S
1DH9-16-14OG	M16X1.5	M14X1.5	8	O11.3X2.4	18.5	33.7	34	16	19	19
1DH9-18-16OG	M18X1.5	M16X1.5	10	O13.3X2.4	19.5	36	36	19	22	22
1DH9-20-18OG	M20X1.5	M18X1.5	12	O15.3X2.4	22.7	36	37	19	24	24
1DH9-22-20OG	M22X1.5	M20X1.5	14	O17.3X2.4	23.5	41	40.5	22	27	27
1DH9-24-22OG	M24X1.5	M22X1.5	16	O19.3X2.4	24	42	41	24	30	27
1DH9-30-27OG	M30X2	M27X2	20	O23.5X3.0	32.9	49.8	50	30	36	32	40 Heavy Series S
1DH9-36-33OG	M36X2	M33X2	25	O29.5X3.0	32.8	56.8	54	36	46	41
1DH9-42OG	M42X2	M42X2	30	O38.5X3.0	36	62.7	57.2	41	50	50
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert sufix "RN" after our part NO.,for example 1DH9-20-18OGRN.
