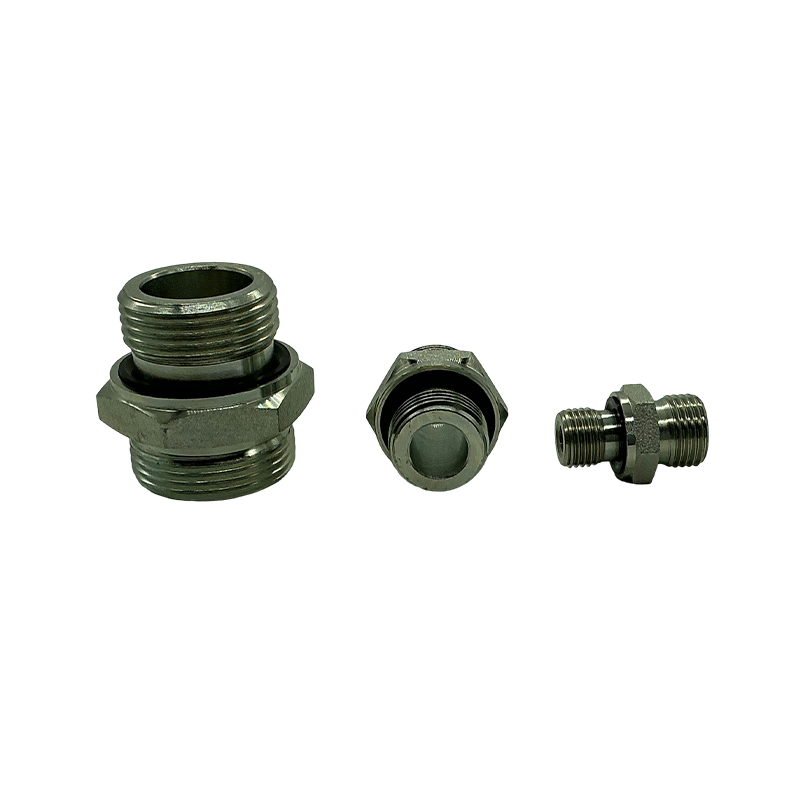

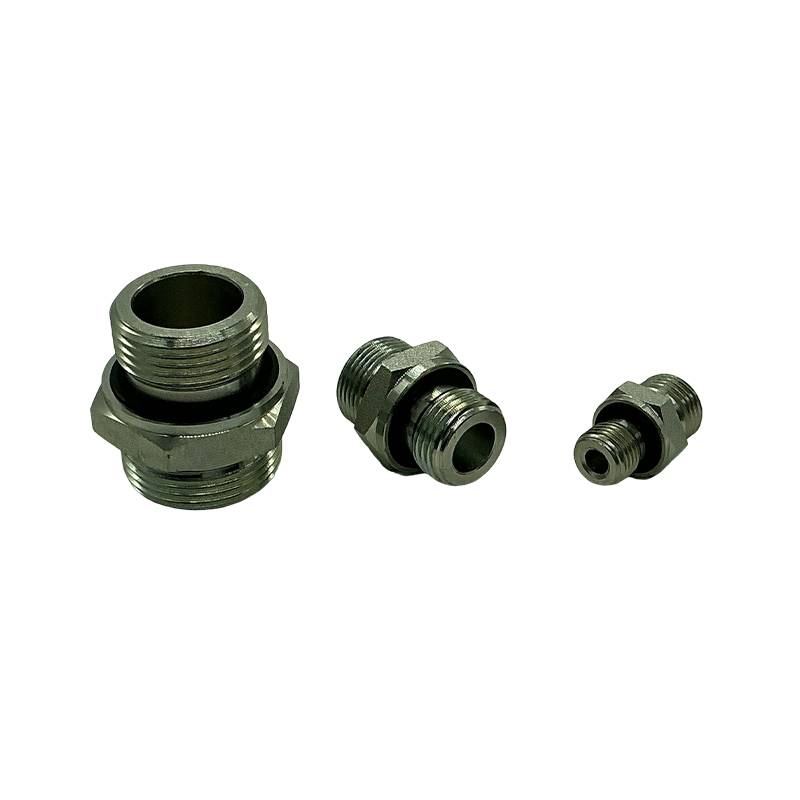

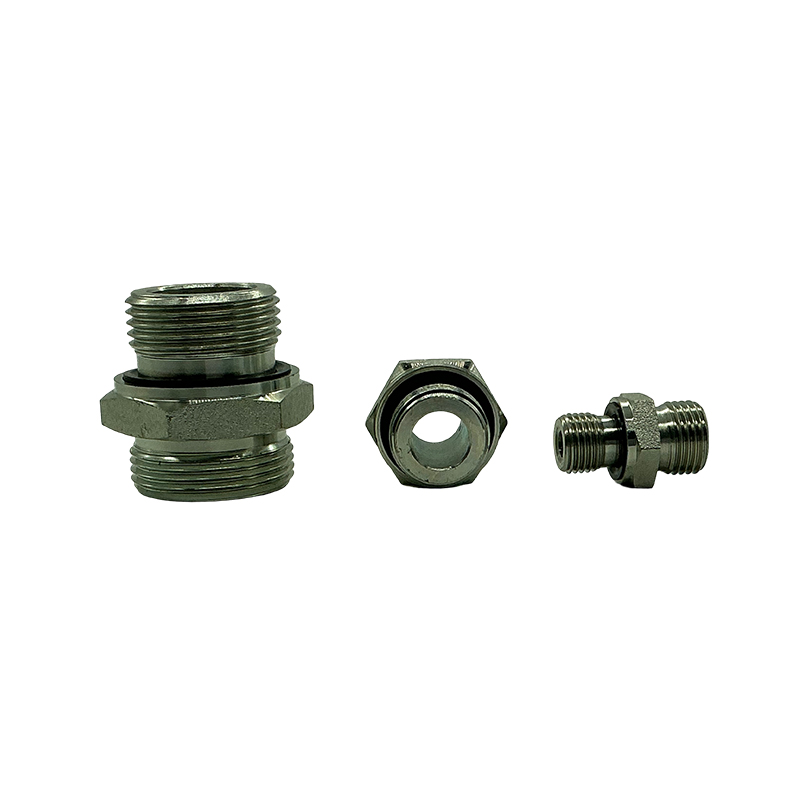

BSP Thread With Captive Seal

1CB-WD 1DB-WD
Order quantity, custom drawings.

Consult

Features
Technical Indicators
Overall Dimension


1CB-WD 1DB-WD 1CB-WDRN 1DB-WDRN PART NO. THREAD TUBE O.D. DIMENSIONS MPa E F D1 B 11 L1 S1 S2 1CB-12-02WD M12X1.5 G1/8"X28 6 8 9.5 23.5 14 14 31.5 Light Series L 1CB-12-04WD M12X1.5 G1/4"X19 6 12 10 25 19 14 1CB-12-06WD M12X1.5 G3/8"X19 6 12 11.5 26.5 22 14 1CB-14-02WD M14X1.5 G1/8"X28 8 8 9.5 24 14 17 1CB-14-04WD M14X1.5 G1/4"X19 8 12 10 24 19 17 1CB-14-06WD M14X1.5 G3/8"X19 8 12 11.5 26 22 17 1CB-16-04WD M16X1.5 G1/4”X19 10 12 11 24.5 19 19 1CB-16-06WD M16X1.5 G3/8"X19 10 12 12.5 26 22 19 1CB-16-08WD M16X1.5 G1/2"X14 10 14 14 28 27 19 1CB-18-04WD M18X1.5 G1/4"X19 12 12 11 27 19 22 1CB-18-06WD M18X1.5 G3/8"X19 12 12 12.5 26 22 22 1CB-18-08WD M18X1.5 G1/2"X14 12 14 14 28 27 22 1CB-22-04WD M22X1.5 G1/4"X19 15 12 13 28 24 27 1CB-22-06WD M22X1.5 G3/8"X19 15 12 13.5 28 24 27 1CB-22-08WD M22X1.5 G1/2"X14 15 14 15 29 27 27 1CB-22-12WD M22X1.5 G3/4"X14 15 16 15 29 32 27 1CB-26-08WD M26X1.5 G1/2"X14 18 14 14.5 31 27 32 1CB-26-12WD M26X1.5 G3/4"X14 18 16 14.5 31 32 32 1CB-30-12WD M30X2 G3/4"X14 22 16 16.5 33 32 36 16 Light Series L 1CB-36-16WD M36X2 G1"X11 28 18 17.5 34 41 41 1CB-45-20WD M45X2 G1.1/4"X11 35 20 17.5 39 50 50 1CB-52-24WD M52X2 G1.1/2"X11 42 22 19 42 55 60 1DB-14-04WD M14X1.5 G1/4"X19 6 12 15 30 19 17 63 Heavy Series S 1DB-16-04WD M16X1.5 G1/4"X19 8 12 15 30 19 19 1DB-16-06WD M16X1.5 G3/8"X19 8 12 15.5 30 22 19 1DB-18-04WD M18X1.5 G1/4"X19 10 12 14.5 31 19 22 1DB-18-06WD M18X1.5 G3/8”X19 10 12 14.5 31 22 22 1DB-18-08WD M18X1.5 G1/2"X14 10 14 17.5 34 27 22 1DB-20-04WD M20X1.5 G1/4"X19 12 12 15 33 22 24 1DB-20-06WD M20X1.5 G3/8"X19 12 12 15 33 22 24 1DB-20-08WD M20X1.5 G1/2"X14 12 14 17.8 34 27 24 1DB-22-08WD M22X1.5 G1/2"X14 14 14 19 37 27 27 1DB-24-06WD M24X1.5 G3/8"X19 16 12 18.5 36.5 27 30 40 Heavy Series S 1DB-24-08WD M24X1.5 G1/2"X14 16 14 18.8 37 27 30 1DB-24-12WD M24X1.5 G3/4"X14 16 16 20.5 39 32 30 1DB-30-12WD M30X2 G3/4"X14 20 16 20.5 42 32 36 1DB-36-08WD M36X2 G1/2"X14 25 14 23 47 41 46 1DB-36-12WD M36X2 G3/4"X14 25 16 23 47 41 46 1DB-36-16WD M36X2 G1"X11 25 18 23 47 41 46 1DB-42-20WD M42X2 G1.1/4"X11 30 20 23.5 50 50 50 1DB-52-24WD M52X2 G1.1/2"X11 38 22 26 57 55 60 31.5 Heavy Series S Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1DB-20-08WDRN.

PART NO.	THREAD		TUBE O.D.	DIMENSIONS					MPa
PART NO.	E	F	D1	B	11	L1	S1	S2	MPa
1CB-12-02WD	M12X1.5	G1/8"X28	6	8	9.5	23.5	14	14	31.5 Light Series L
1CB-12-04WD	M12X1.5	G1/4"X19	6	12	10	25	19	14
1CB-12-06WD	M12X1.5	G3/8"X19	6	12	11.5	26.5	22	14
1CB-14-02WD	M14X1.5	G1/8"X28	8	8	9.5	24	14	17
1CB-14-04WD	M14X1.5	G1/4"X19	8	12	10	24	19	17
1CB-14-06WD	M14X1.5	G3/8"X19	8	12	11.5	26	22	17
1CB-16-04WD	M16X1.5	G1/4”X19	10	12	11	24.5	19	19
1CB-16-06WD	M16X1.5	G3/8"X19	10	12	12.5	26	22	19
1CB-16-08WD	M16X1.5	G1/2"X14	10	14	14	28	27	19
1CB-18-04WD	M18X1.5	G1/4"X19	12	12	11	27	19	22
1CB-18-06WD	M18X1.5	G3/8"X19	12	12	12.5	26	22	22
1CB-18-08WD	M18X1.5	G1/2"X14	12	14	14	28	27	22
1CB-22-04WD	M22X1.5	G1/4"X19	15	12	13	28	24	27
1CB-22-06WD	M22X1.5	G3/8"X19	15	12	13.5	28	24	27
1CB-22-08WD	M22X1.5	G1/2"X14	15	14	15	29	27	27
1CB-22-12WD	M22X1.5	G3/4"X14	15	16	15	29	32	27
1CB-26-08WD	M26X1.5	G1/2"X14	18	14	14.5	31	27	32
1CB-26-12WD	M26X1.5	G3/4"X14	18	16	14.5	31	32	32
1CB-30-12WD	M30X2	G3/4"X14	22	16	16.5	33	32	36	16 Light Series L
1CB-36-16WD	M36X2	G1"X11	28	18	17.5	34	41	41
1CB-45-20WD	M45X2	G1.1/4"X11	35	20	17.5	39	50	50
1CB-52-24WD	M52X2	G1.1/2"X11	42	22	19	42	55	60
1DB-14-04WD	M14X1.5	G1/4"X19	6	12	15	30	19	17	63 Heavy Series S
1DB-16-04WD	M16X1.5	G1/4"X19	8	12	15	30	19	19
1DB-16-06WD	M16X1.5	G3/8"X19	8	12	15.5	30	22	19
1DB-18-04WD	M18X1.5	G1/4"X19	10	12	14.5	31	19	22
1DB-18-06WD	M18X1.5	G3/8”X19	10	12	14.5	31	22	22
1DB-18-08WD	M18X1.5	G1/2"X14	10	14	17.5	34	27	22
1DB-20-04WD	M20X1.5	G1/4"X19	12	12	15	33	22	24
1DB-20-06WD	M20X1.5	G3/8"X19	12	12	15	33	22	24
1DB-20-08WD	M20X1.5	G1/2"X14	12	14	17.8	34	27	24
1DB-22-08WD	M22X1.5	G1/2"X14	14	14	19	37	27	27
1DB-24-06WD	M24X1.5	G3/8"X19	16	12	18.5	36.5	27	30	40 Heavy Series S
1DB-24-08WD	M24X1.5	G1/2"X14	16	14	18.8	37	27	30
1DB-24-12WD	M24X1.5	G3/4"X14	16	16	20.5	39	32	30
1DB-30-12WD	M30X2	G3/4"X14	20	16	20.5	42	32	36
1DB-36-08WD	M36X2	G1/2"X14	25	14	23	47	41	46
1DB-36-12WD	M36X2	G3/4"X14	25	16	23	47	41	46
1DB-36-16WD	M36X2	G1"X11	25	18	23	47	41	46
1DB-42-20WD	M42X2	G1.1/4"X11	30	20	23.5	50	50	50
1DB-52-24WD	M52X2	G1.1/2"X11	38	22	26	57	55	60	31.5 Heavy Series S
Note:In case if you are interested to order the adapter in complete set with cutting ring and nut ,it is necessary to insert suffix "RN" after our part no.,for example 1DB-20-08WDRN.
